电源时序器

Power timing

产品型号Product model：     DR-802

面板颜色Panel color：        黑色拉丝（默认）Black wire drawing (the default)

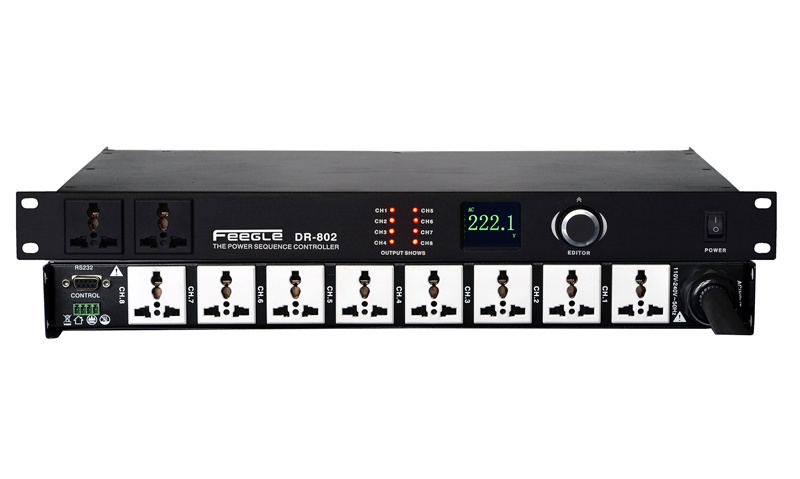

产品图片Product pictures：

功能特点：

◆   2吋彩色液晶智能显示窗，实时显示当前电压、通道开关状态；

◆   8路通道输出，每路延时开启和关闭时间可自由设置（范围0~999S）；

◆   特设欠压、超压检测及报警功能，为您的设备提供了可靠的保障，总功率6000W，单路最大功率2000W（40A继电器）；

◆   主电缆多股6平方

◆   支持多台设备级联控制，级联状态可自动检测及设置；

◆   配置RS232接口，支持外部中央控制设备控制；

◆   可实现远程集中控制，每台设备自带设备编码ID检测和设置；

◆   支持面板Lock锁定功能，防止人为误操作；

◆   适用场所：

◆   大型剧院、室外演出、酒吧、多媒体会议厅、多功能厅、培训中心、多媒体教室、智能影院、智能家居等

技术参数表：

额定输出电压：        交流220V.50Hz

可控制电源：          8路外加2路输出辅助通道,10chs

每路动作延时时间：    0-999秒

供电电源：            AC220V 50/60Hz 30A

状态显示：            2寸彩色液晶实时显示当前电压,每路开关状态

单路额定输出电流：    15A

额定总输出电流：      30A

每通道继电器：        40A

Function characteristics:

l  2 inches color LCD intelligent display window, real-time display voltage, current channel switch state;

l  8-way channel output, each time delay are free to set the opening and closing time range (0 ~ 999 s);

l  Mixer AD hoc undervoltage, overpressure detection and alarm functions, provide reliable guarantee for your equipment, total power of 6000 w, single way maximum power 2000 w (40 a relay);

l  More than pieces of main cable 6 square

l  In pieces to support multiple devices cascade control, cascade state can automatically detect and Settings;

l  Configuration RS232 interface, support outside the central control device control;

l  Can realize the remote centralized control, each device bring equipment coding ID inspection and Settings;

l  Support panel Lock locking function, prevent operation error;

l  Application places:

l  Pieces of large theater, outdoor performances, bars, multimedia conference rooms, multi-function hall, training center, multimedia classroom, smart movie theaters, smart home, etc

Technical parameter list:

The rated output voltage:               ac 220 v. 50 hz
Can control power:                     8 auxiliary channel output plus 2 road, 10 CHS
Each action delay time:                 0-999 seconds
Power supply:                         AC220V 50/60 hz 30 a
Status:                               2 inches color LCD real-time display voltage, current every way                   switch state
Single way rated output current:         15 a
The total output current rating:          30 a
Each channel relay:                    40 a
