全数字效果卡拉OK前级

The effect of full digital karaoke before class

产品型号Product model：       DSP-2200

面板颜色Panel color：          黑色拉丝（默认）Black wire drawing (the default)

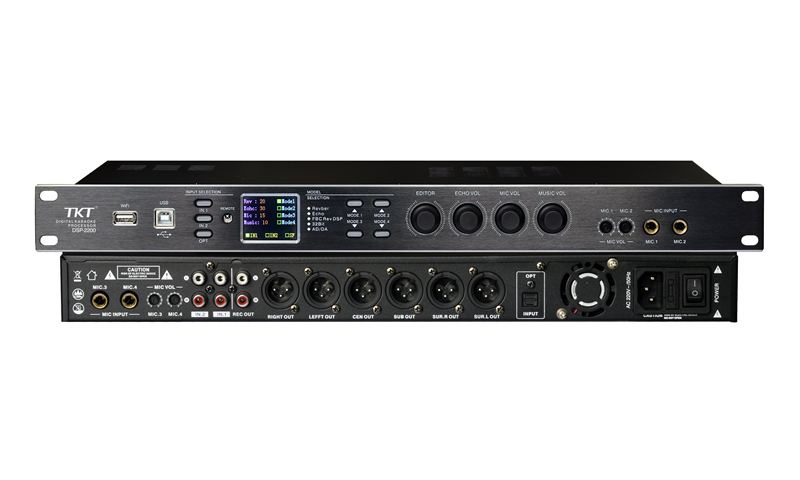

产品图片Product pictures：

产品介绍：

DSP-2200 是在DSP技术上开发的新一代全数字音频前级放大器，加上还具备音频处理器的功能，最高规格的进口订制电容，高保真AD.DA，工艺追求极致，具有动态均衡、频谱显示、双路话筒调节、Wifi软件调试、工程缩等等，使用众多的设定来个性化你的声音，有增强的早期反射和混响的尾音，有惊人的混响密度，适合大小房间。

◆   具备光钎信号输入。

◆   配合摇麦，双路话筒独立参数可调。

◆   自带频谱显示。

◆   效果增设一组ECHO，针对效果密度的修饰，话筒具有16段均衡点。

◆   音乐声道及消声设定。噪声门参数调节，高品质的混响加回声技术。

◆   开机初始模式锁定功能，面板有4仲模式随意切换。

◆   面板有手动调节输入三种选择。

◆   密码设置，自带工程锁无限阶段锁，每次密码都可改变。

◆   最大调节模式锁定功能，更安全，更有效的系统进行保护。

◆   具有独有的ULTRA引擎技术，突显了超凡的防啸叫功能。

◆

技术参数：

最大输出电平：       4.0v(RMS)

通道增益：           MAX12dB

灵敏度：             64mv(输出4.0v）

通道增益：           30dB

信噪比：             ≥80dB

电源：               220V~ 50Hz

电源消耗：          ≤50W

机身尺寸：          483×201.5×44（mm）

包装尺寸：          540×260×90（mm）

机身重量：          3.4Kg

包装重量：          4.2K

Product introduction:

DSP - 2200 is in DSP technology on the development of a new generation of digital audio amplifier before, and also has the function of the audio processor, the highest level of import custom-made capacitance, high fidelity AD. DA, process the pursuit of perfection, a dynamic equilibrium, spectrum display, two-way adjustment, Wifi phone software debugging, engineering, and so on, using a range of Settings to personalize your voice, have enhanced, early end reflection and reverberation reverb density, suitable for the size of the room.

l  pieces with optical fibers signal input.

l  pieces with wheat, two-way adjustable microphone independent parameters.

l  In pieces with spectrum display.

l  Mixer effect to establish a set of ECHO, in view of the effect of density, microphone with 16 segment equilibrium.

l  Mixer music track and dead set.Reverberation of noise gate parameter adjustment, high quality technology of the echo.

l  In pieces on the initial mode locking function, the panel with 4 secondary mode switch.

l  Mixer panel with manual regulation input three options.

l  Password, bringing engineering infinite phase lock locks, password can be changed at a time.

l  Biggest adjustment mode locking, safer, more effective system for protection.

l  Pieces with a unique ULTRA engine technology, highlights the extraordinary prevent noise function.
In pieces

Technical parameters:

The maximum output level:            4.0 v (RMS)

Channel gain:                        MAX12dB
Sensitivity:                           64 mv (4.0 v output)
Channel gain:                        30 db
Signal to noise ratio:                  80 db or higher
Power:                              220 v ~ 50 hz
The power consumption:              50 w or less
The fuselage size:                    483 * 201.5 * 44 (mm)
Packing size:                         540 * 260 * 260 (mm)
Weight:                             3.4 Kg
Package weight:                     4.2 K
