Digital front-end processor of karaoke

产品型号Product model：  DSP-2600

面板颜色Panel color：     银色拉丝（默认）Silver wire drawing (default)

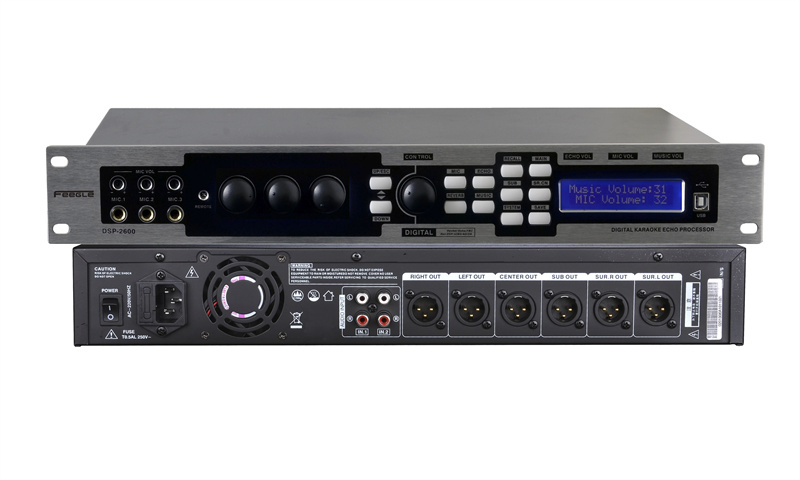

产品图片Product pictures：

产品介绍：

DSP-2600是在DSP技术上开发的新一代全数字音频前级放大器，加上还具备音频处理器的功能，DSP-2600具备高质量效果，使用众多的设定来个性化你的声音，有增强的早期反射和混响的尾音，有惊人的混响密度，适合大小房间。

产品特点：

●  采用专业级双核DSP，255MHZ主频，96KHZ采样频率/24-bit A/D及D/A转换，32-bit浮点运算高速DSP处理器；

●  配专业PC设备管理控制软件， 提供USB接口可连接电脑;操作方便直观；

●  21种效果记忆功能，包含10种预置和10种自编1组管理员数据记忆组ADMIN

●  音输入通道均设有7段独立参量均衡，麦克风输入通道均设有15段独立参量均衡等功能

●  专业数字移频功能

技术参数：

最大输出电平：    4.2v(RMS)

最大输入电平：    4.2v(RMS)

通道增益：        MAX12dB

灵敏度：          64mv(输出4.2v）

通道增益：        40dB

信噪比：          ≥80dB

电源：            220V~ 50Hz

电源消耗：        ≤50W

包装尺寸：        510×315×122mm

机身重量：        5.2Kg

包装重量：        5.9K

Product introduction:
DSP - 2600 is in DSP technology on the development of a new generation of digital audio amplifier before, and also has the function of the audio processor, DSP - 2600 have high quality effect, the use of numerous set to personalize your voice, have enhanced, early end reflection and reverberation reverb density, suitable for the size of the room.

Product features:

l  When using professional dual-core DSP, 255 MHZ, 96 KHZ sampling frequency / 24 - bit A/D and D/A conversion, 32 - bit floating point arithmetic high-speed DSP processor;

l  With professional PC equipment management control software, provide USB interface can connect the computer;Convenient operation intuitive;

l  effect of 21 kinds of memory, including 10 kinds of preset and 10 kinds of the self-made 1 administrator data memory group ADMIN

l  sound input channels are balanced with paragraph 7 independent parameters, the microphone input channels are balanced with 15 paragraph independent parameters, and other functions

l  Professional digital low frequency shift function

Technical parameters:
The maximum output level:        4.2 v (RMS)
Maximum input level:             4.2 v (RMS)
Channel gain:                    MAX12dB
Sensitivity:                       64 mv (4.2 v output)
Channel gain:                    40 db
Signal to noise ratio:              80 db or higher
Power:                           220 v ~ 50 hz
The power consumption:           50 w or less
Packing size:                      510 * 315 * 122 mm
Weight:                          5.2  Kg
Package weight:                   5.9 K
